Μητρική ASRock B760M PG LIGHTNING WIFI BT mATX LGA1700
Μητρική ASRock B760M PG LIGHTNING WIFI BT mATX LGA1700Μητρική ASRock B760M PG LIGHTNING WIFI BT mATX LGA1700Μητρική ASRock B760M PG LIGHTNING WIFI BT mATX LGA1700
Μητρική ASRock B760M PG LIGHTNING WIFI BT mATX LGA1700
90-MXBMT0-A0UAYZ
Kωδικός 005719
160.00€
Web Price 5%
 Τιμή ανά τμχ 152.50€

Μητρική ASRock B760M PG LIGHTNING WIFI BT mATX LGA1700

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)

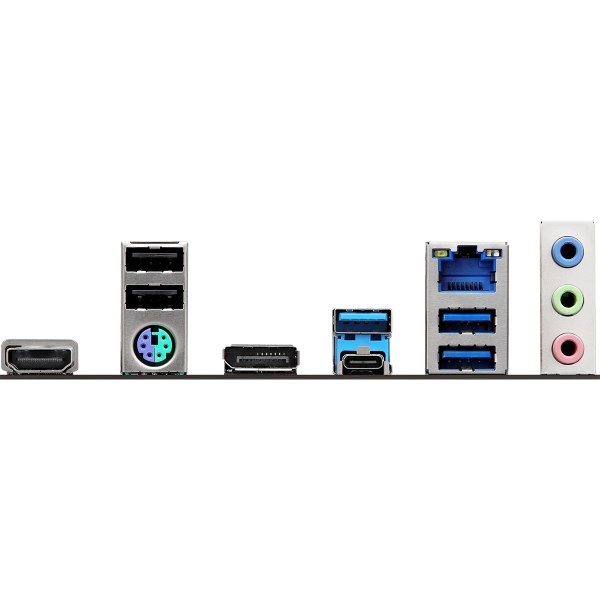

  • 1 USB 3.2 Gen1 Type-C (Rear),
    5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
    6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer

Τεχνικά χαρακτηριστικά

Mainboard

Form Factor
Micro ATX
Chipset Type
Intel B760
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 3600 MHz, 4400 MHz, 7200 MHz (O.C.)
Processor Socket
LGA1700 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots

Interfaces

Internal Interfaces
1 x audio - header, 2 x USB 2.0 - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features
Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture
Max Supported Size
192 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)

Networking

Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Expansion Slots

Expansion Slots
1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 4 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x4 mode)

Interfaces

Storage Interfaces
PCIe 4.0 -connectors: 3 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Hyper M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x Hyper M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included
ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software

Dimensions & Weight

Width
24,4 cm
Depth
24,4 cm
