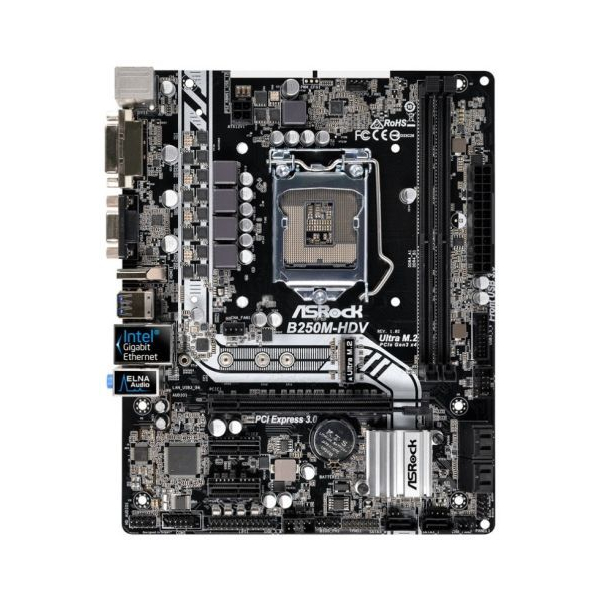

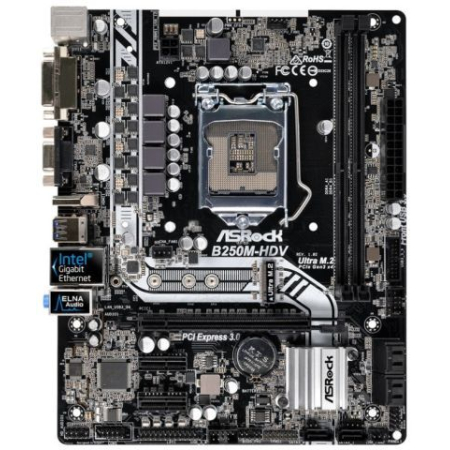

Μητρική ASRock B250M-HDV micro ATX LGA1151
Μητρική ASRock B250M-HDV micro ATX LGA1151
Μητρική ASRock B250M-HDV micro ATX LGA1151
Kωδικός 002904
69.00€
Web Price 4%
 Τιμή ανά τμχ 66.40€

Μητρική micro ATX B250M HDV ASRock

Description

Product Description
ASRock B250M-HDV - motherboard - micro ATX - LGA1151 Socket - B250
Product Type
Motherboard - micro ATX
Chipset Type
Intel B250 Express
Processor Socket
1 x LGA1151 Socket
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM Size
32 GB
RAM Supported
2 DIMM slots - DDR4, non-ECC, unbuffered
Storage Ports
6 x SATA-600 (RAID), 1 x Ultra M.2
USB / FireWire Ports
4 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
Max Allocated RAM Size
1024 MB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet

Technical description

General

Product Type
Motherboard - micro ATX
Chipset Type
Intel B250 Express
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Supported RAM

Max Size
32 GB
Technology
DDR4
Bus Clock
2400 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0

Graphics

Max Allocated RAM Size
1024 MB

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio

LAN

Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x Ultra M.2
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices
Interfaces
1 x PS/2 keyboard / mouse ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 4 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
1 x USB 3.0 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector

Features

BIOS Type
AMI
BIOS Features
UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
Chassis intrusion detection, Trusted Platform Module (TPM), ASRock Instant Flash, Digital PWM, 5 Phase Power Design, ASRock APP Charger, Intel Turbo Boost Technology 2.0, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, Triple Monitor, 4K resolution support, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Premium 50A Power Choke

Miscellaneous

Included Accessories
I/O back plate
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
Compliant Standards
WHQL, FCC
Width
22.6 cm
Depth
18.3 cm
